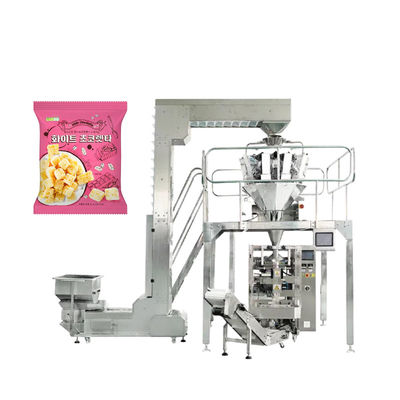

Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine

I'm Online Chat Now

Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine

Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine
Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine
Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine

Large Image :  Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine

Product Details:
Place of Origin: Guangdong,China
Brand Name: CS
Certification: CE
Model Number: CS-520
Payment & Shipping Terms:
Minimum Order Quantity: 2
Price: Price negotiable
Packaging Details: Export wooden box
Delivery Time: Delivery date negotiable
Payment Terms: T/T
Supply Ability: 100 units per month

Vertical Multi Head Weigher Dry Fruit Spice Potato Chips Popcorn Pouch Packing Machine

Description
Bag Length: 80-370mm (L) Bag Width: 80-250mm (M)
Maximum Film Width: 520mm Packing Speed: 5-60 Bags/min
Measuring Range: 3000ML (MAX) Air Consumption: 1.0MPA
Granule Packing Machine: 10 Head Weighing Location: 8 Station
Power Consumption: Depends On The Number Of Heads And Type Of Product Type: Multi-Function Packaging Machine
Dimensions: Depends On The Number Of Heads And Type Of Product Power Supply: AC220V/380V, 50Hz
Weight: 750kg Accuracy: Depends On The Type Of Product And Weighing Range
Number Of Heads: 15 Air Pressure: 0.6-0.8MPa
Packing Weight: 50-1000g Core Components: Motor, PLC, Gear
Largest Film Width: Max.720mm Power: 3kw 220v 50HZ
Item: Multi Head Weigher Packing Machine
Highlight:

Multifunction multi head weigher

,

Vertical multi head weigher

,

Chips popcorn pouch packing machine

Multifunction Vertical Multi Heads Weigher Dry Fruit Spice Packaging Machine Potato Chips Popcorn Pouch Packaging Machinery



Are you still worried about your product packaging?
Low capacity - high scrap rate - no guarantee after sale - high cost
Choose Changsheng packaging machinery, all the above troubles are not in words
Changsheng packaging machinery
8 years of craftsmanship
Accurate and rapid packaging saves time and manpower for enterprises to save 70% labor costs
High precision - high capacity - fast efficiency - save time - save capacity - good quality



Improve enterprise efficiency
Automatic multi-head packing machine
Factory direct sales, sophisticated technology, simple operation
Touch screen, data memory, automatic feeding, automatic sealing, multiple languages, automatic weighing



Multi-head weigher packaging machine is an efficient and accurate automated packaging equipment, widely used in food, chemical, pharmaceutical and other industries
Performance characteristics
High-precision weighing: using advanced weighing sensors and precise combined weighing technology, it can achieve very high weighing accuracy, and the general error can be controlled within a very small range, such as ±0.5 grams to ±2 grams, to ensure that the weight of each bag of product meets the standard requirements.
High-speed packaging: With a high packaging speed, it can complete dozens or even hundreds of packaging operations per minute, which can meet the needs of large-scale production and effectively improve production efficiency.
Strong flexibility: according to different material characteristics and packaging requirements, the packaging weight, packaging speed, packaging form and other parameters can be flexibly adjusted. At the same time, it can adapt to various types of materials, such as granular, powdery, flake, block, etc., and can also achieve three-side sealing, four-side sealing, back sealing and other packaging forms.



Specification
Model
CS-520
Weight
10-2000 grams
Speed
10-60 packs/min
Accuracy
±1.5 grams
Bag style
Pillow bag, gusset bag, quad-sealed bag
Bag size
Width 80-300mm, length 80-350mm
Power
220V, 50HZ/60HZ, 5.95KW
Air consumption
1.5m3/min
