Product Details:
|
Function: | FILLING, Wrapping, Sealing | Packaging Type: | Bags, Pouch |
---|---|---|---|
Packaging Material: | Plastic | Voltage: | 380V |
Function FILLING, Wrapping, Sealing Packaging Type Bags, Pouch Packaging Material Plastic Voltage 38: | PASTE, Liquid | Weight (KG): | 1500 |
Application: | Food, Beverage | Automatic Grade: | Automatic |
Warranty: | 1 Year | After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Online Support, Field Maintenance And Repair Service, Free Spare Parts |
Machine Material: | Stainless Steel | Power Consumption: | 5-8KW |
Customized Support: | OEM,ODM | Air Pressure: | 0.6MPa |
Packing Material: | Plastic Film, Paper, Aluminum Foil, Etc. | Application: | Food, Pharmaceutical, Chemical, Hardware, Etc. |
Packing Type: | Pillow Bag, Gusset Bag, Stand-up Bag, Etc. | Bag Size: | Length: 50-300mm, Width: 50-200mm |
Weight: | 1000-2000kg | Packing Speed: | Up To 200 Packs Per Minute |
Number Of Lanes: | 2-10 Lanes | Air Consumption: | 0.4m3/min |
Dimension: | 3000*1200*1800mm | Power Supply: | 220V/380V, 50/60Hz, 3 Phase |
Highlight: | Sealing Multi Lane Packing Machine,Capping Multi Lane Packing Machine,Pharmaceutical multi lane sachet packaging machine |

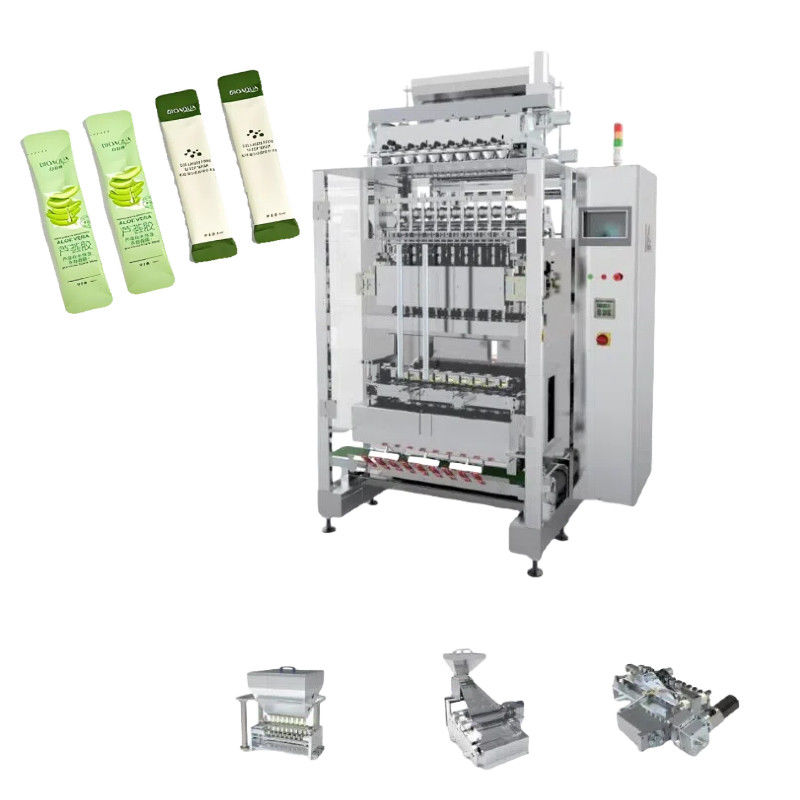

Capping And Sealing Multi Lane Packing Machine For Various Packaging Methods Of Liquid Products
The multi-row liquid packaging machine is a highly efficient automated equipment, mainly used for multi-row synchronous packaging of liquid or semi-fluid products, and is widely used in food, medicine, chemical, daily chemical and other industries.
Hygienic and safe design
It adopts a stainless steel body and a dead-angle-free structure, which complies with GMP/ISO standards. Some models support CIP (online cleaning) and SIP (online sterilization) functions to ensure the hygiene needs of the food and pharmaceutical industries.
Modular expansion capability
Functional modules can be selected according to needs, such as automatic feeding system, weighing detection, date printing, metal detection, etc., to enhance the intelligence and flexibility of the production line.
Typical application scenarios:
Beverages (milk tea, juice, sauce)
Medicine (oral liquid, injection)
Daily chemical (shampoo, hand sanitizer)
Chemical (lubricating oil, liquid fertilizer)
This type of equipment can significantly increase production capacity (for example, tens of thousands of bags are processed per hour) and reduce labor costs through multi-row parallel operation, which is especially suitable for medium and high-volume liquid packaging needs.
Main Features
1. lt has SS 304 stainless steel, a strong and long-lasting material.
Lane number
|
4/6/8/10/12 Lanes
|
Measuring range
|
1-50ml (depend on bag size and packaging material)
|
Packing speed
|
30-50 cuts/min
|
Bag length
|
Max. 170mm (customized)
|
Bag width
|
16-84mm / 16-54mm / 16-40mm / 16-32mm / 16-26mm
|
Bag type
|
3/4 side seal bag, back seal bag, irregular shape stick bag
|
Voltage
|
380V, 50Hz, 3 Phase
|
Power
|
4.5-6.2KW
|
Air consumption
|
7L/min
|
Machine size
|
Non-standard customization
|
Machine weight
|
About 1500kg
|
